NextPure Valve Manifold Boxes distribute ultra-high-purity and specialty gases from a central supply line to multiple process tools. Each branch can be configured for independent isolation, pressure monitoring, purge, venting and facility control integration.
Valve Manifold Boxes can be configured by outlet count, gas type, flow demand, pressure-control method, valve actuation and facility interface.
01

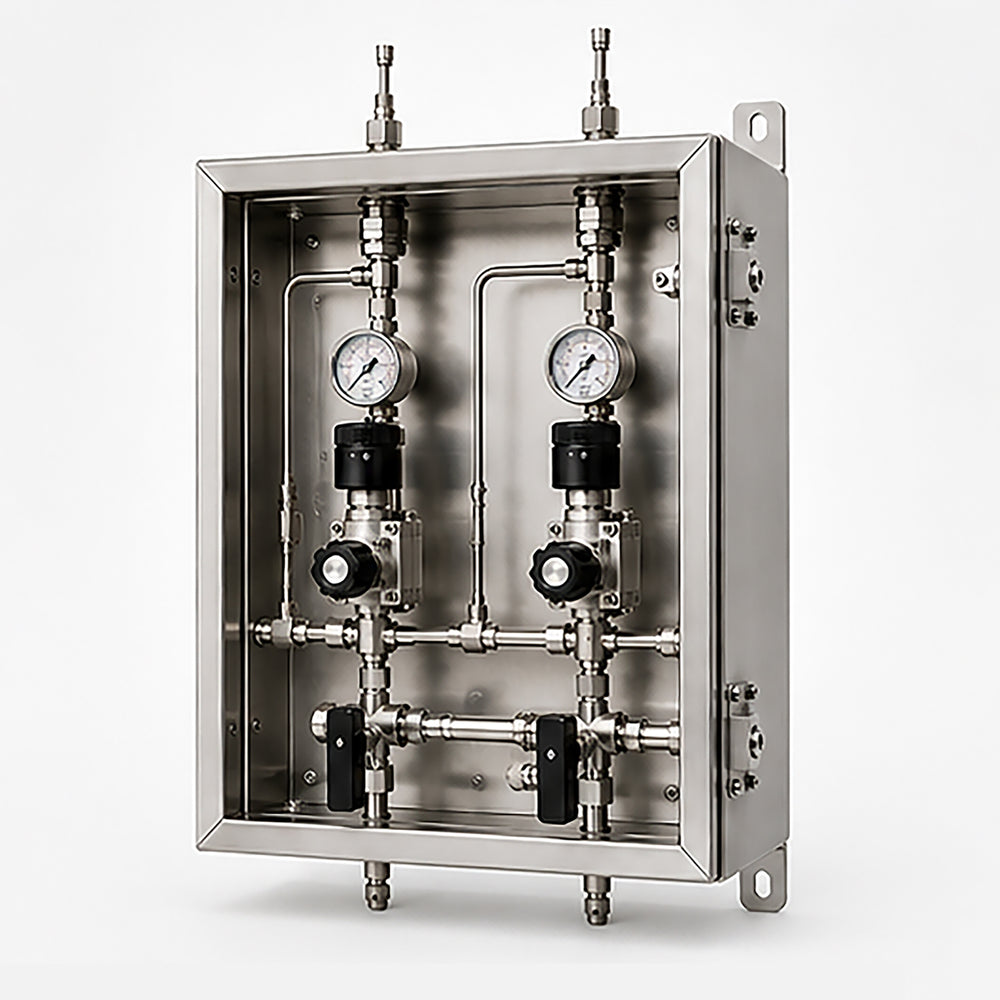

A compact VMB for two independently controlled process-tool outlets from one central gas supply.
02

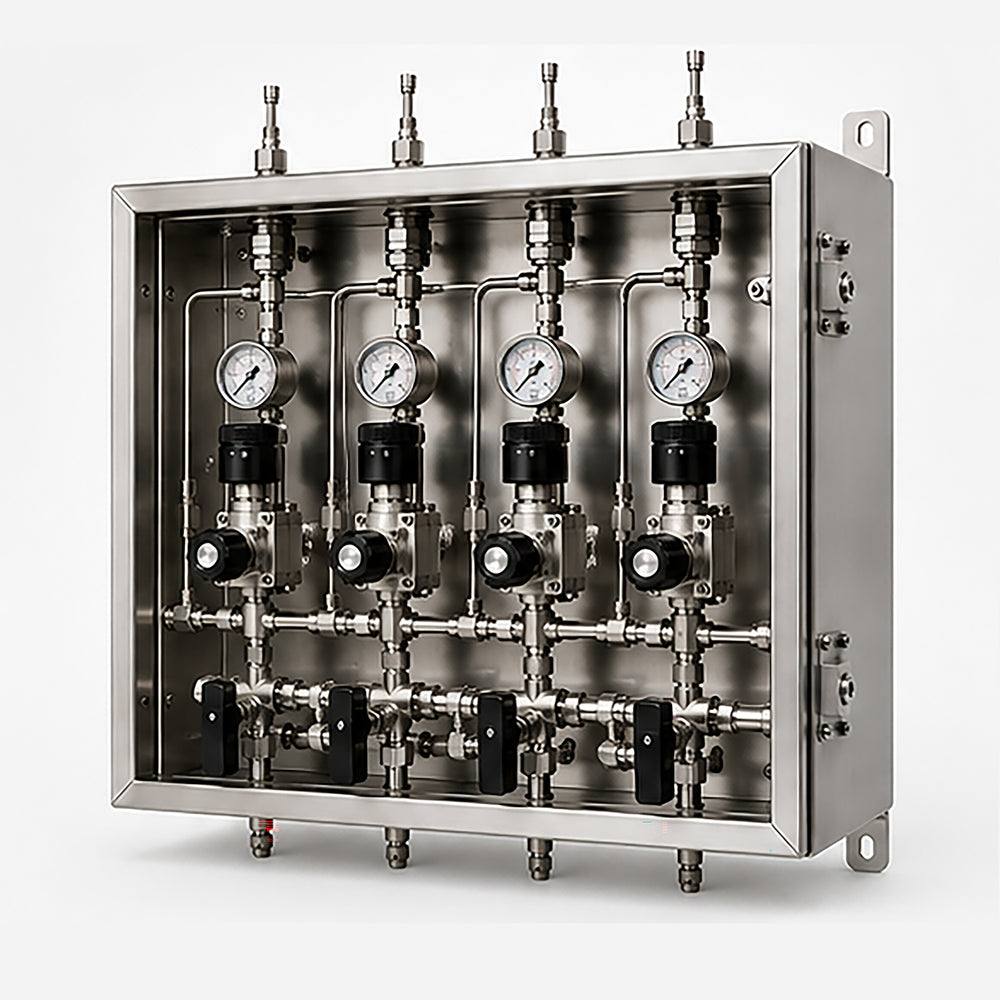

A four-branch distribution system for medium-density production lines and multiple process tools.
03

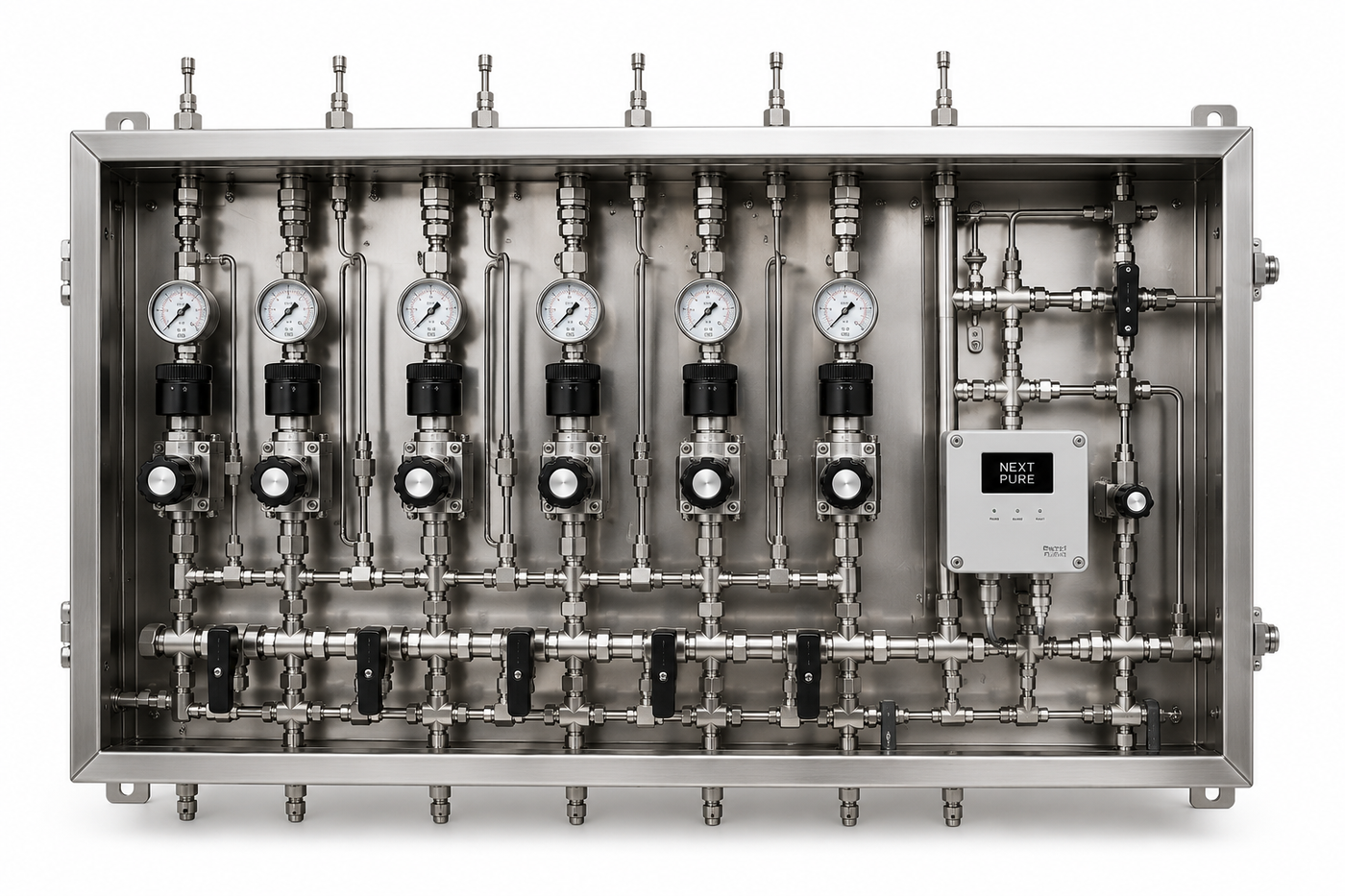

A higher-density manifold platform developed for multiple tools, process zones or future facility expansion.
04

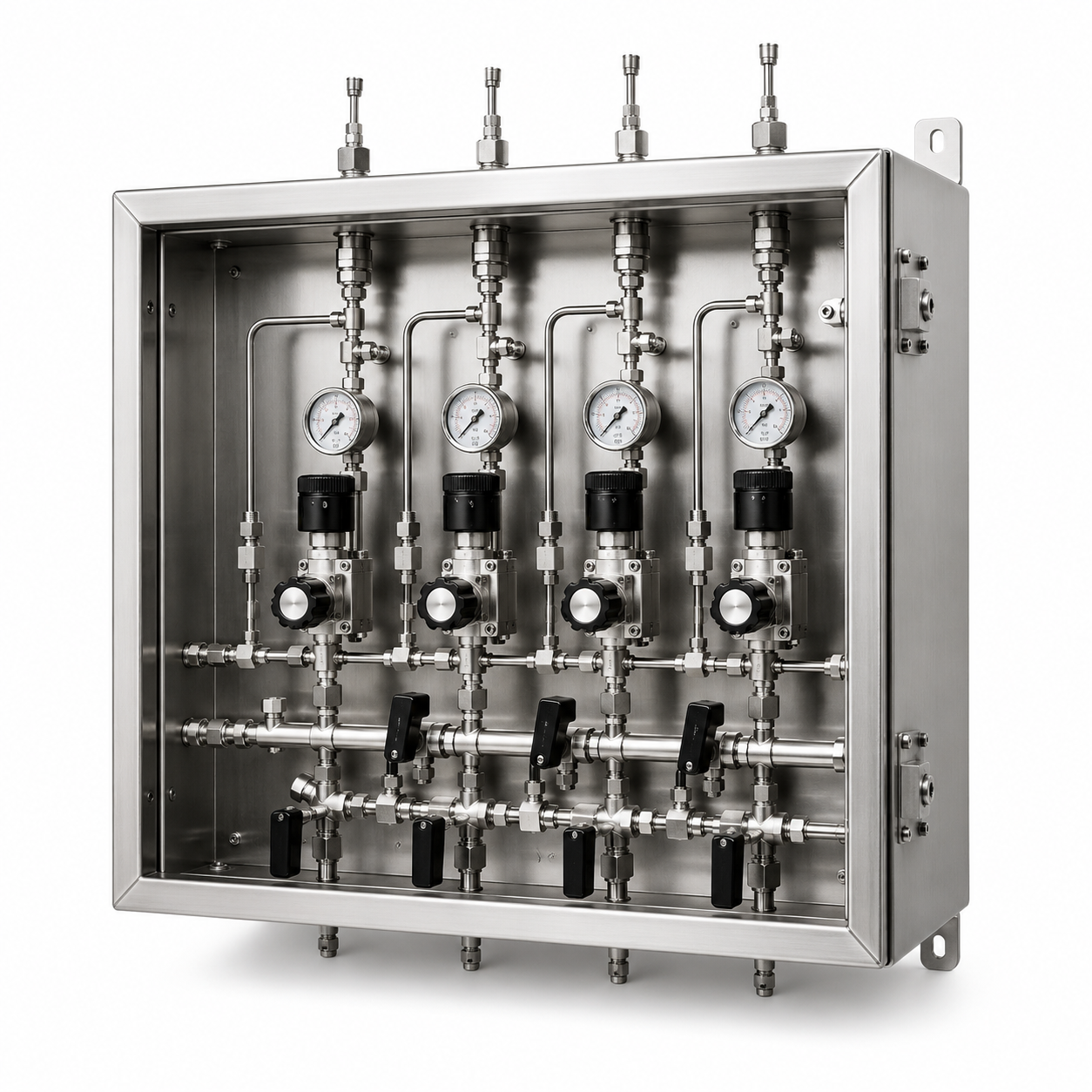

A project-engineered VMB developed around gas compatibility, outlet count, flow, pressure and control requirements.
VMB design should reflect gas compatibility, inlet pressure, outlet count, branch flow, valve and regulator selection, purge and vent strategy, enclosure exhaust, control philosophy and process-tool interface. NextPure supports standard layouts and project-specific engineering.
Gas properties, inlet conditions, total demand, branch flow, pressure and purity requirements.
Enclosure size, gas-stick quantity, tubing layout, valves, regulators and outlet connections.
Branch isolation, purge and vent sequencing, pressure monitoring, alarms and emergency shutdown.
Weld inspection, helium leak testing, functional checks and project documentation according to scope.
Share the gas name, inlet pressure, required outlet count, branch flow, outlet pressure, valve actuation, purge strategy and facility interface. Our team will help define an appropriate VMB configuration.
